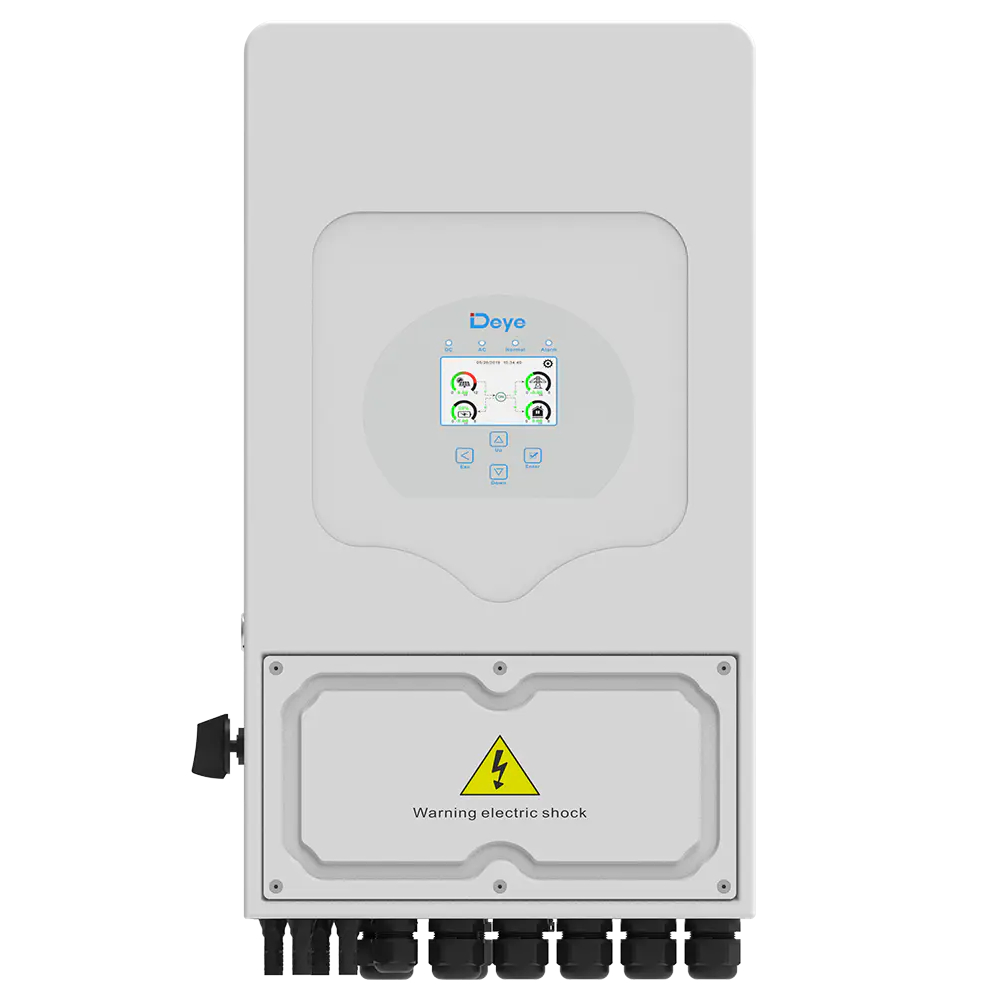

Deye SUN-6K-SG05LP1-EU-AM2-P is a hybrid grid-connected inverter with wide functionality. It will help you realize your idea of ​​creating a self-sufficient home. It is able to operate in different modes: as an autonomous inverter; as a grid-connected inverter with or without batteries; sell excess electricity to the grid at a "green tariff" or work as a station to compensate for the facility's own consumption; work as an uninterruptible power supply from the grid; control a generator. All of these modes can be selected. What also distinguishes this inverter from others is the presence of an additional programmable channel, which can be both an input and an output, but read more about it below.

Working with an external network.
The Deye SUN-6K-SG05LP1-EU-AM2-P inverter can operate in the mode of selling excess electricity generated at a "green" tariff. The energy will be directed to the home's own needs, charging the batteries, and the excess energy will go to the external network. If you do not want to connect to a "green" tariff or do not have the opportunity to issue it, then the inverter will work to compensate for its own consumption, generating as much energy as is needed to cover the needs of the consumer, preventing the flow of excess energy to the external network.

Working with a battery.
To accumulate solar energy, you can connect lead-acid or lithium batteries to the inverter. If the battery has a CAN or RS485 synchronization port, then the inverter will be able to receive data on the capacity, remaining charge, required charge current, temperature. If the battery does not have a synchronization port, then the charge parameters can be set manually. The parameters can be set, as in measuring values, and in percentage. It is possible to specify the discharge current, for the correct battery operating mode, select charge sources, for each source to select its own individual mode, give a signal to external devices, set daily charging modes.

Work with an additional power port.
This inverter has one distinctive feature, it has an additional multifunctional power port, which in the inverter settings menu can be assigned as both an input and an output. It has three usage options.

Generator mode - in this mode, a generator is connected to the port, it can be controlled by the inverter, started when the inverter needs it in automatic mode. For this, you need to have a generator with automation. The inverter gives a signal to allow the generator to operate, and the generator starts. In the inverter settings, it is possible to set the generator power that is permissible to take from it, as well as the maximum generator operating time, the generator rest time. Separately, you can specify the battery charging current for this input.

Smart load mode - in case When this mode is enabled, the input becomes an output, and if there is excess energy, the inverter will send power to the load. The load can be, for example, an electric water heater. The inverter settings allow you to specify the battery discharge range for this excess energy discharge mode.

Micro-inverter mode - in this mode, the additional port becomes an input, and when there is not enough solar energy, an additional field of solar modules on a network inverter or on microinverters can be connected to this input.

Working with solar panels.
This Deye inverter model has the ability to connect two solar fields with a current of up to 18 A. The MPPT controller operating range is 150-425 V, the inverter starts at 125 V, and the upper limit of the field voltage is 500 V. In the ideal case for the inverter, solar panels should be selected based on the nominal MPPT voltage of 370 V. The passport indicates the maximum total power 9600 W, but according to the electrical parameters of the MPRT there may be more.

Service functions, performance and other points.
The inverter has an LCD display with touch control, all settings, management, configuration settings are carried out through the display. Also included in the delivery is a WiFi module for connecting to the SOLARMAN-based cloud monitoring service. Monitoring allows you to monitor the operation of the system, view graphs for the entire period of operation and practically all electrical parameters of the inverter. Also, statistics on the generation produced by the sun, given to the consumer and to the network are available on the basic LCD display.

Physical installation of the inverter is available outdoors, since the degree of protection of the inverter is IP65. Cooling of the inverter is forced, with three coolers with electronic speed control.

SERVICE CONDITIONS

1. When contacting technical support or service, a Deye inverter with a configured Logger (Solarman or DeyeCloud) must be connected to the Internet.
2. When contacting the service, a photo/video of the installed equipment must be provided.
3. The equipment must be installed by qualified specialists.
