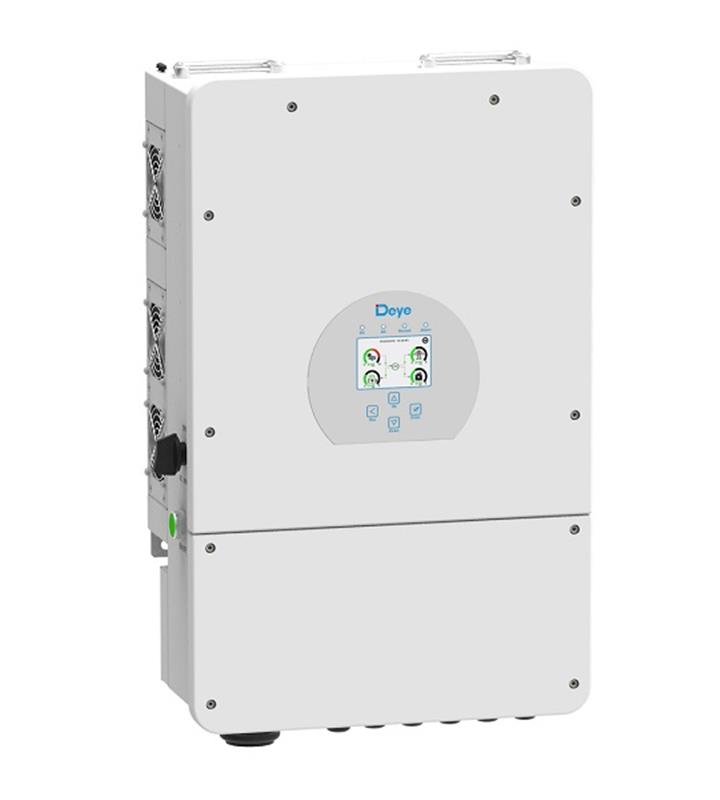

Deye SUN-10K-SG05LP3-EU-SM2 is a modern three-phase hybrid inverter with a capacity of 10,000W and a battery voltage of 48V, which can provide reliable power supply. Three-phase current support allows for wide application of the device.

The inverter efficiency is 97.60%.

This inverter can receive electricity from solar panels from the general power grid, and also supports operation with gasoline generators. The backup power system of your home or office can be provided by batteries with a voltage of 48V. It is best to buy lithium-ion or lead-acid batteries.

With the help of Deye SUN-10K-SG05LP3-EU-SM2, you can transport excess electricity generated from solar photovoltaic modules to the local power grid under the “Green Tariff” system. This will bring additional income.

The intelligent monitoring system will allow you to qualitatively adjust the parameters of the solar power plant and remotely monitor its operation.

The main advantages of the inverter:
-The inverter has two built-in MPPT trackers, to which you can connect three strings of solar panels (2 on the first and 1 on the second). In this case, solar panels can be mounted on different sides of the roof, or on the ground, in series or in parallel. Tracker input current: 26A + 26A. Input voltage: 200-650V.
-High charging current: 210A
-Compatibility with diesel and gasoline generators.
-Modern protection system against loads, short circuits.
-SPP operation monitoring system
-The possibility of increasing the power of the SPP can be achieved by parallel connection of up to 10 models of this inverter.

SERVICE CONDITIONS

1. When contacting technical support or service, the Deye inverter with a configured Logger (Solarman or DeyeCloud) must be connected to the Internet.
2. When contacting the service, a photo/video of the installed equipment must be provided.
3. The equipment must be installed by qualified specialists.
